PIR insulation for flat roofs achieves Part L compliance through warm roof construction, where insulation boards (typically 120-180mm thick) sit above the structural deck beneath the waterproofing membrane. This approach maintains the entire roof structure at near room temperature, preventing condensation issues that affected older cold roof designs while achieving U-values between 0.13-0.18 W/m²K depending on insulation thickness. Warm roof construction has become the standard method for new flat roofs and re-roofing projects across UK residential and commercial buildings.

Understanding Flat Roof Insulation Requirements

Flat roofs present specific challenges that make insulation specification more critical than pitched roofs. The exposed horizontal surface takes direct solar gain in summer and maximum heat loss in winter. Water sits on the surface rather than running off quickly. The weatherproofing membrane takes constant UV exposure and temperature cycling.

What Part L requires for flat roofs:

Part L 2021 sets a maximum U-value of 0.16 W/m²K for new build flat roofs. Extensions and renovations where more than 50% of the roof covering is replaced must also achieve 0.16 W/m²K where reasonably practical.

Scotland has stricter requirements at 0.13 W/m²K for new builds. This tighter standard typically requires 150-180mm PIR insulation compared to 120-150mm for English requirements.

Why flat roofs need more insulation than walls:

The 0.16 W/m²K requirement for roofs is significantly tighter than the 0.26 W/m²K requirement for walls. This reflects the greater heat loss through roof surfaces due to:

• Warm air rises, creating higher heat loss through ceilings and roofs
• Flat roofs have no ventilated void providing additional insulation like pitched roofs
• External surface temperature varies more dramatically than vertical wall surfaces
• Moisture risk is higher, so better thermal performance reduces condensation potential

Condensation risk in flat roofs:

Poorly insulated flat roofs create ideal conditions for condensation. Warm, moist air from the building below reaches cold surfaces in the roof structure, causing water vapour to condense into liquid water. Over time, this moisture rots timber decks, corrodes metal decks, and saturates insulation reducing its effectiveness.

Warm roof construction solves this by keeping the structural deck warm. When the deck temperature stays above dewpoint, condensation can’t occur. This fundamental principle makes warm roofs more reliable than cold roof alternatives.

Warm Roof vs Cold Roof Construction

Understanding the difference between warm and cold roof construction explains why warm roofs dominate modern flat roof specifications.

Cold Roof Construction

Cold roof design places insulation between or beneath ceiling joists, leaving the structural deck and roof void cold. The roof void requires ventilation to remove moisture that inevitably migrates upward from the building.

Cold roof build-up (bottom to top):

1. Ceiling finish (plasterboard)
2. Vapour control layer
3. Insulation between joists
4. Structural deck
5. Ventilated void (50mm minimum)
6. Waterproofing membrane

Why cold roofs fail:

The ventilation required for cold roofs rarely works properly in practice. Achieving adequate cross-ventilation across the full roof area is difficult. Complex roof shapes, multiple penetrations, and restricted eaves details prevent proper airflow. Stagnant areas trap moisture, leading to condensation and subsequent decay.

The insulation sits in a position where air movement reduces its effectiveness. Wind washing through the ventilation void carries heat away, increasing the actual U-value beyond calculated values.

Achieving 0.16 W/m²K with cold roof construction requires very thick insulation (200mm+ mineral wool typically) because the ventilation void reduces effectiveness. This makes cold roofs impractical for meeting current Part L requirements.

Warm Roof Construction

Warm roof design places insulation above the structural deck. The deck, structure, and entire roof void remain at or near room temperature.

Warm roof build-up (bottom to top):

1. Ceiling finish (plasterboard)
2. Structural deck
3. Vapour control layer
4. PIR insulation (120-180mm typical)
5. Waterproofing membrane

Why warm roofs work:

No ventilation is required because the deck stays warm and dry. Moisture can’t condense because there are no cold surfaces for it to condense on. The insulation performs as calculated because it’s protected from air movement and moisture.

The build-up is simpler with fewer layers and no ventilation detailing. Installation is faster and more reliable. Performance is predictable – what you calculate is what you get in real-world use.

Warm roofs can achieve 0.16 W/m²K with 120-140mm PIR insulation, compared to 200mm+ for cold roofs. This saves build-up depth while improving performance and reliability.

Inverted Roof Construction

Inverted roofs (also called upside-down roofs) place insulation above the waterproofing membrane rather than beneath it. This protects the membrane from temperature cycling and UV exposure, potentially extending its life.

Inverted roof build-up (bottom to top):

1. Structural deck
2. Waterproofing membrane
3. Insulation (typically XPS rather than PIR)
4. Filter layer
5. Ballast (gravel, paving, or green roof system)

Inverted roofs require water-resistant insulation (XPS is standard) and careful detailing at edges and penetrations. They’re less common than conventional warm roofs for standard applications but suit green roofs and roof terraces where the build-up needs protection from foot traffic.

Part L U-Value Requirements for Flat Roofs

Meeting Part L for flat roofs requires understanding both the target U-values and how to achieve them reliably.

Part L 2021 Requirements (England and Wales)

• New build roofs: 0.16 W/m²K maximum
• Extension roofs: 0.16 W/m²K maximum
• Renovations (over 50% of covering replaced): 0.18 W/m²K where reasonably achievable

The 0.18 W/m²K renovation target acknowledges constraints in existing buildings. If achieving 0.16 W/m²K creates technical problems (inadequate deck strength for additional insulation weight, inadequate upstand heights, conflicts with existing drainage) then 0.18 W/m²K is acceptable.

Scotland Building Standards

• New build roofs: 0.13 W/m²K maximum
• Extensions and renovations: stricter than England, typically 0.15 W/m²K minimum

Scottish requirements necessitate thicker insulation. Where English requirements need 120-140mm PIR, Scottish requirements typically need 150-180mm.

Calculating Actual U-Values

Roof U-values depend on the complete build-up, not just insulation thickness. The structural deck, vapour control layer, waterproofing membrane, and any ceiling void all contribute to overall thermal resistance.

Example U-value calculations for warm roof with PIR insulation:

These figures assume PIR with 0.022 W/mK lambda value and account for fixings creating thermal bridging. Actual U-values vary with specific build-up details – always run proper calculations using approved software or manufacturer tools.

Accounting for Fixings

Mechanical fixings through insulation create thermal bridges. Each fixing provides a conductive path through the insulation, increasing the actual U-value above the calculated centre-of-panel value.

The impact depends on fixing density (fixings per square metre) and fixing type (length, diameter, material). For typical flat roof fixing patterns, thermal bridging adds approximately 0.005-0.015 W/m²K to the centre-of-panel U-value.

Some manufacturers produce insulation boards with enhanced wind uplift resistance, allowing lower fixing densities. Fewer fixings means less thermal bridging, improving overall roof U-value.

PIR Insulation for Warm Roof Build-Ups

PIR boards are the standard insulation choice for warm flat roofs. The material characteristics suit flat roof requirements perfectly.

Why PIR works for flat roofs:

Compressive strength: PIR boards resist compression from foot traffic during installation and maintenance access. Standard boards achieve 120-150 kPa compressive strength, adequate for occasional foot traffic without permanent deformation.

Moisture resistance: The closed-cell structure resists water absorption. If water sits on the insulation surface (during installation or if the membrane leaks), PIR maintains its thermal performance. Fibrous insulation would saturate and lose effectiveness.

Dimensional stability: PIR boards maintain their dimensions across temperature variations. The roof surface might vary from -10°C in winter to +70°C in summer sun. PIR doesn’t expand or contract significantly, preventing joint opening that would allow air infiltration.

Fire performance: PIR boards achieve Class E fire rating, meeting requirements for most applications. For buildings over 18m (approximately 6 storeys), check current guidance on combustible materials in roof build-ups.

Board facing requirements:

Most Celotex and Kingspan PIR boards come with aluminium foil facings. These suit most waterproofing systems. Two specific situations require different facings:

Torch-applied felt systems: The torch heat would melt aluminium foil facings. Use boards with glass tissue facings (Celotex Crown-Fix, Kingspan TR26, or equivalent) that withstand torch application temperatures.

Some single-ply systems: Certain single-ply membrane manufacturers require specific board facings for warranty compliance. Check membrane manufacturer specifications before ordering insulation.

Fixing compatibility:

Insulation fixing method depends on deck type and waterproofing system:

Timber decks: Wood screws or specialist flat roof fixings with large heads distribute load across board surface. Fixing length must penetrate deck adequately (typically 40mm minimum into timber).

Steel decks: Self-drilling screws designed for metal deck fixing. The screw must penetrate through insulation, waterproofing underlayer, and into deck with adequate pull-out resistance.

Concrete decks: Mechanical fixings (typically requiring pre-drilled holes) or adhesive bonding. Some warm roof systems on concrete use partial bonding (20-25% coverage) allowing moisture to escape laterally if water ingress occurs.

Calculating PIR Thickness for Flat Roof U-Values

Determining required insulation thickness for target U-values involves either detailed calculation using approved software or using manufacturer tables as a starting point.

Quick Reference Thickness Guide

For typical warm roof construction with timber deck, vapour control layer, PIR insulation, and waterproofing membrane:

Target 0.18 W/m²K: 100-110mm PIR Target 0.16 W/m²K: 120-130mm PIR Target 0.15 W/m²K: 130-140mm PIR Target 0.13 W/m²K: 150-160mm PIR Target 0.11 W/m²K: 180-190mm PIR

These thicknesses assume 0.022 W/mK lambda value PIR and account for typical fixing patterns. Different deck materials, ceiling voids, or unusual build-ups require recalculation.

Step-by-Step Thickness Calculation

For accurate calculations, use manufacturer U-value calculators or approved calculation software. Here’s the process:

Step 1: Define complete build-up List all layers from inside to outside with material specifications:

• Internal finish (plasterboard type and thickness)
• Ceiling void if present (depth and ventilation status)
• Structural deck (material and thickness)
• Vapour control layer (type and thermal resistance)
• Insulation (thickness to be determined)
• Waterproofing (type and layers)

Step 2: Input known thermal resistances Each layer has a thermal resistance (R-value) calculated from thickness and conductivity. Input R-values for all layers except insulation.

Step 3: Determine required insulation R-value The target U-value (for example 0.16 W/m²K) converts to target total thermal resistance (R-total = 1/U = 6.25 m²K/W). Subtract R-values of other layers to find required insulation R-value.

Step 4: Calculate insulation thickness Insulation thickness = Required R-value × Lambda value For example: If required R-value is 5.45 m²K/W and lambda is 0.022 W/mK: Thickness = 5.45 × 0.022 = 120mm (approximately)

Step 5: Account for fixing thermal bridging Add 5-10mm to calculated thickness to compensate for thermal bridging through fixings. If calculations suggest 120mm, specify 130mm to ensure achieved U-value meets targets.

When to specify extra thickness:

Beyond minimum Part L compliance, consider specifying extra thickness for:

Future-proofing: Building Regulations will continue tightening. Specifying 0.13-0.15 W/m²K now instead of 0.16 W/m²K adds 10-20mm thickness but extends compliance lifetime.

Energy performance: Better U-values improve EPC ratings. For commercial buildings, EPC ratings affect property value and rental achievability.

Comfort: Lower U-values reduce heat loss, improving internal comfort and reducing heating costs. The payback period for extra insulation thickness is typically under 10 years through energy savings.

Scotland compliance: If building in England but near the Scottish border, matching Scottish standards (0.13 W/m²K) avoids confusion if building use changes.

Flat Roof Build-Up Layers and Sequence

Proper layer sequencing prevents moisture problems and ensures designed thermal performance.

Standard Warm Roof Build-Up (Bottom to Top)

Layer 1: Internal Finish Typically 12.5mm plasterboard on ceiling joists or directly fixed to underside of deck. The plasterboard provides fire resistance, acoustic performance, and finished ceiling surface. For improved fire ratings, use two layers of 12.5mm fire-rated plasterboard.

Layer 2: Structural Deck Common deck materials:

Timber deck: 18-22mm OSB or plywood boards. OSB/3 or better required for structural adequacy. Boards must span between joists without excessive deflection under loading.

Steel deck: Trapezoidal profile steel deck with adequate load-bearing capacity. Common profiles include 0.7-1.2mm thickness depending on span and loading.

Concrete deck: In-situ concrete slabs or precast concrete planks. Minimum 100mm thickness typical. Must achieve adequate strength before insulation installation.

The deck must be:

• Structurally adequate for loading (insulation weight, waterproofing weight, water loading, snow loading, maintenance access)
• Dry before insulation installation (moisture trapped beneath vapour control layer has nowhere to go)
• Level within tolerance (typically ±5mm over 3m) to prevent ponding

Layer 3: Vapour Control Layer (VCL)

The VCL prevents warm, moist air from inside the building reaching cold surfaces where condensation would occur. Position on the warm side (underneath) of insulation is critical.

VCL options:

Self-adhesive bitumen membranes: Easiest to install with reliable sealing at overlaps. Apply directly to clean, dry deck surface. Overlap joints minimum 100mm with firm roller pressure for good adhesion.

Torch-applied bitumen underlayer: Provides both VCL and deck protection but requires skilled installation. Risk of deck ignition with timber decks if not carefully torched.

Reinforced foil VCL: Lightweight option for timber decks. Requires careful taping of all joints and penetrations. Any gaps compromise effectiveness.

VCL installation must be:

• Continuous across entire roof area with sealed overlaps
• Sealed around all penetrations (pipes, vents, roof lights)
• Lapped with wall airtightness layers at perimeters
• Installed without damage (punctures create moisture paths)

Layer 4: PIR Insulation

Install PIR boards with tight joints, starting from one edge and working across the roof. Stagger board joints like brickwork to prevent continuous lines that could allow air infiltration.

Board joints must be:

• Tight-fitting with no gaps (gaps allow air circulation reducing thermal performance)
• Staggered between rows (avoid continuous joints)
• Taped with aluminium foil tape for fully adhered systems

For mechanically-fixed systems, fixing density depends on wind uplift calculations. Exposed locations or large roof areas need higher fixing densities. Follow system manufacturer specifications for fixing patterns.

Some installers lay boards loose, relying on waterproofing adhesive or ballast to hold them in place. This is poor practice. Boards can move during membrane installation, creating gaps. Use at least temporary fixing or adhesive dabs to hold boards in position.

Layer 5: Waterproofing Membrane

Waterproofing options include:

Built-up felt (three-layer torch-on): Traditional and reliable. Base layer partially bonded or loose-laid, intermediate layer torch-applied, cap sheet torch-applied with 100mm overlaps.

Single-ply membrane: TPO, PVC, or EPDM membranes mechanically fixed or adhered. Faster installation than built-up felt. Joints heat-welded for reliable sealing.

Liquid-applied membrane: Brushed or rolled onto insulation surface. Forms seamless waterproofing layer. Requires adequate thickness (typically 2-3mm) for durability.

GRP (fibreglass): Resin-based system creating hard-wearing surface. Good for areas with regular foot traffic. Requires proper substrate preparation and skilled installation.

The waterproofing must:

• Extend up perimeter upstands minimum 150mm above finished roof level
• Seal around all penetrations with proper flashings
• Lap with wall DPC at abutments
• Provide adequate falls for drainage (minimum 1:80 for most systems)

Tapered Insulation Systems for Flat Roofs

Flat roofs require falls for water drainage. Creating these falls with tapered insulation maintains consistent thermal performance while directing water to outlets.

Why tapered insulation matters:

Creating falls by sloping the structural deck produces varying insulation thickness across the roof. The thin end has less insulation than the thick end, creating thermal weak points and potential cold bridging.

Tapered insulation systems maintain consistent thickness at the thinnest point while building up extra thickness to create falls. This ensures the entire roof achieves target U-values without thermal weak spots.

How tapered systems work:

Tapered PIR boards are cut to precise thicknesses creating predetermined falls when laid in specified patterns. A typical system might include:

• Base layer: 120mm uniform thickness across entire roof
• Tapered layers: Boards ranging from 0mm to 80mm thickness laid in pattern creating 1:80 falls

The combined build-up maintains minimum 120mm everywhere while adding extra thickness to create falls.

Specifying tapered systems:

Tapered insulation requires detailed roof plans showing:

• Roof layout with dimensions
• Outlet positions and elevations
• Required fall directions and gradients
• Any level changes or multiple drainage zones

Manufacturers use these plans to create cutting schedules showing exactly which boards go where. Each board is numbered and marked, making site installation straightforward despite complexity.

Falls requirements for different systems:

Torch-applied felt: Minimum 1:80 falls (12.5mm per metre). Steeper falls (1:60 or 1:40) help water run off faster, reducing standing water time and UV exposure.

Single-ply membranes: Minimum 1:80 falls for TPO/PVC, 1:60 for EPDM (which has less rigidity).

Liquid-applied membranes: Can handle shallower falls (1:80 adequate) but steeper falls still improve drainage.

Green roofs: Require falls for drainage layer typically 1:80 minimum.

Cost implications of tapered systems:

Tapered insulation costs approximately 20-30% more than flat insulation due to cutting complexity and waste. For small roofs (under 50m²), the proportion of waste is higher, increasing the cost premium.

For roofs with multiple outlets or complex drainage, tapered systems save overall project cost despite higher insulation cost. The alternative (creating falls in the structural deck) requires more complex framing, increases labour time, and still produces thermal weak points.

Installation tips for tapered systems:

Mark the deck with chalk lines showing board layout before starting. Tapered boards must go in correct positions or falls won’t work properly.

Check outlet positions carefully. If outlets are even slightly off design positions, the tapered pattern may not drain correctly. Correct outlet positions before starting insulation installation.

For large roofs, divide into zones and install one zone at a time. This prevents confusion and ensures boards go in correct positions.

Celotex and Kingspan Products for Flat Roofs

Major PIR manufacturers produce ranges specifically for flat roof applications.

Celotex Products for Flat Roofs

Celotex GA4000: General application boards suitable for most flat roof applications. Standard foil facings, 120 kPa compressive strength, available in all thicknesses from 50mm to 200mm. Works with most waterproofing systems except torch-applied felt.

Celotex Crown-Fix (or similar glass tissue faced): Glass tissue facings withstand torch application. Required for three-layer torch-on felt systems. Available in typical flat roof thicknesses (80mm-180mm).

Celotex RS4000: Marketed for roof sarking but works equally well for flat roofs. Functionally identical to GA4000, just different product positioning.

Celotex tapered systems: Available cut to customer specifications for creating falls. Based on GA4000 core products with custom cutting patterns.

Kingspan Products for Flat Roofs

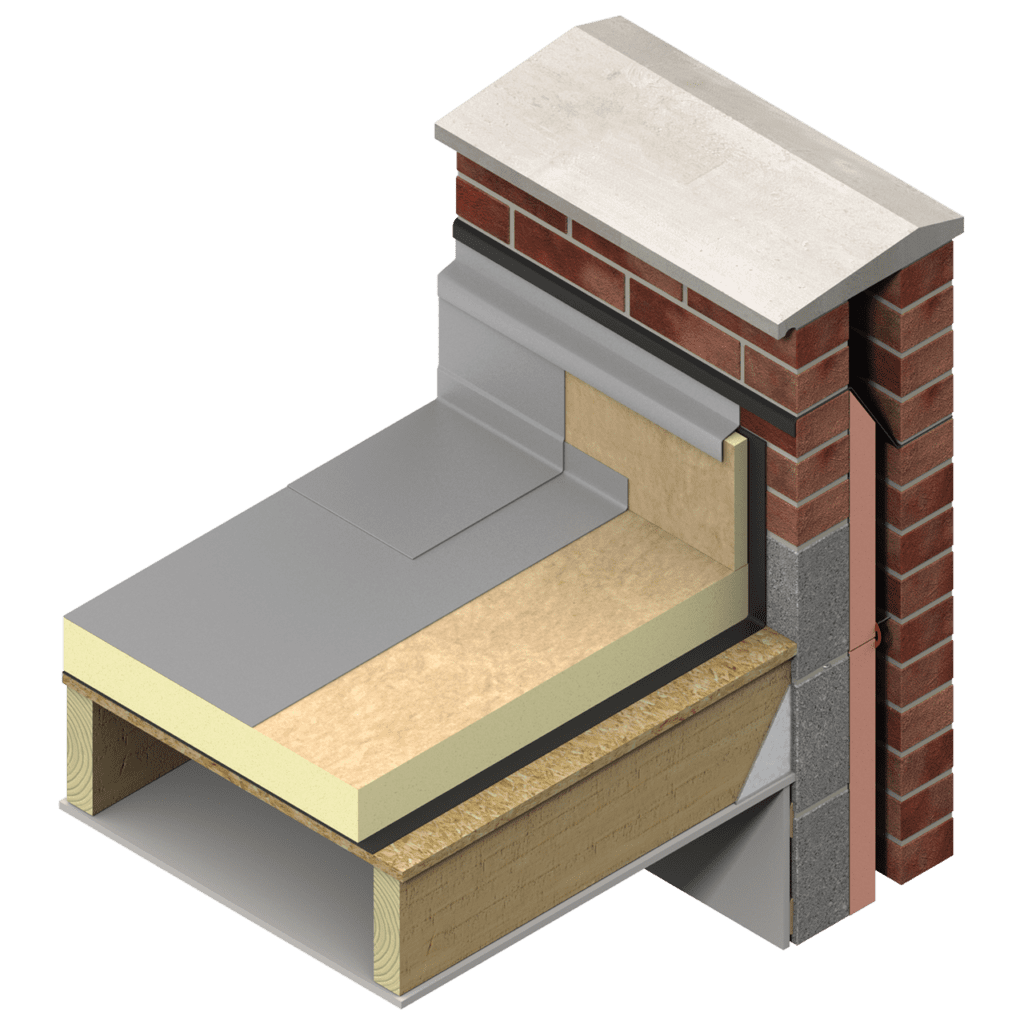

Kingspan Therma TR26: Specifically designed for flat roofs with torch-applied waterproofing. Glass tissue facings on both sides withstand torch heat. Available 80mm-180mm thickness. This is probably the most commonly specified product for traditional built-up felt flat roofs.

Kingspan Therma TR27: For mechanically-fixed or adhered single-ply membrane systems. Foil facings, suitable for most membrane types. Available 50mm-200mm thickness.

Kingspan Optim-R: Premium vacuum insulation panel (VIP) achieving 0.007 W/mK lambda. Allows ultra-thin build-ups (35mm Optim-R equals approximately 130mm standard PIR). Expensive but useful where build-up depth is severely constrained.

Kingspan tapered systems: Comprehensive tapered solutions including software for falls design. More detailed technical support than some competitors.

Product Selection Guide

Always check waterproofing manufacturer specifications. Some systems require specific insulation types for warranty compliance. Using non-approved products voids the waterproofing warranty even if the insulation performs identically to approved products.

Installation Considerations for Trade Professionals

Getting good flat roof performance depends on proper installation across all layers.

Pre-Installation Checks

Before starting insulation installation, verify:

Deck condition: Must be dry, structurally sound, and free from defects. Wet decks trap moisture beneath the VCL, causing long-term problems. Use a moisture meter to confirm timber decks are below 20% moisture content.

Deck level: Check for adequate falls or confirm tapered insulation will create falls. Standing water on the finished roof causes premature membrane failure and increased maintenance.

Deck fixing: All deck boards must be securely fixed without movement. Loose boards cause membrane stress and potential failure. Add fixings where needed before starting insulation installation.

Access and storage: Flat roofs need safe access for materials and workers. Plan how you’ll get insulation boards onto the roof without damage. Store boards flat on the roof, protected from wind and rain.

Vapour Control Layer Installation

VCL installation quality determines whether moisture problems develop:

Surface preparation: The deck surface must be clean and dry for proper VCL adhesion. Sweep away dust and debris. Remove any raised grain or splinters that could puncture the VCL.

Joint sealing: Overlap VCL joints minimum 100mm. For self-adhesive membranes, roll joints firmly with a hand roller. For non-adhesive VCLs, tape all joints with appropriate tape. Any gaps allow moisture through.

Penetration sealing: Seal around all pipes, vents, and roof lights with proper gaskets or mastic. This is where most VCL installations fail – inadequate penetration sealing.

Upstand details: Lap the VCL up perimeter upstands and abutments minimum 150mm. Seal the lap to the upstand with adhesive or mechanical fixing. The VCL must be continuous from deck to wall without gaps.

PIR Board Installation

Lay boards starting from one edge, working across the roof systematically:

First course: Set out the first course carefully. This establishes the pattern for the entire roof. Check boards are square to the edge and joints align properly.

Subsequent courses: Stagger joints minimum 300mm from course to course. This prevents continuous joints that could allow air infiltration. Cut boards as needed to maintain stagger pattern.

Cutting technique: Cut 100mm PIR boards with a fine-toothed saw or sharp knife. For knife cutting, score deeply and snap over a straight edge. Keep cuts square and clean – rough cuts create gaps.

Joint treatment: For fully adhered systems, tape all board joints with aluminium foil tape. Apply tape to clean, dry boards, pressing firmly for good adhesion. Some installers skip taping, but this reduces airtightness and thermal performance.

Fixing patterns: For mechanically-fixed systems, follow manufacturer specifications for fixing density and pattern. Typical residential roofs need 3-5 fixings per board. Commercial or exposed roofs may need 6-8 fixings per board for wind uplift resistance.

Perimeter details: Boards must fit tightly to upstands without gaps. Cut boards to fit rather than leaving gaps and attempting to fill with smaller pieces. Gaps at perimeters create cold bridging and air infiltration paths.

Working in Stages

For large roofs, coordinate insulation installation with waterproofing:

Stage 1 (Day 1): Install VCL and insulation for area that can be waterproofed the same day. Don’t leave insulation exposed overnight if rain is forecast.

Stage 2 (Day 1 continued): Apply waterproofing to completed area. This protects the insulation and allows work to continue even if weather deteriorates.

Stage 3 (Day 2 onwards): Repeat for subsequent areas until roof is complete.

This staged approach prevents weather damage to exposed insulation and allows controlled progress even on large roofs.

Common Installation Mistakes

Leaving insulation exposed: PIR boards with foil facings can be slippery when wet. More importantly, UV exposure degrades facings over weeks of exposure. Apply waterproofing promptly after insulation installation.

Inadequate joint sealing: Gaps between boards allow air circulation that reduces thermal performance by 20-30%. Tape joints or ensure tight fits throughout.

Poor VCL installation: Tears, punctures, or unsealed joints in the VCL allow moisture through. Take care during installation and seal all overlaps and penetrations properly.

Incorrect fixing density: Too few fixings risk wind uplift damage. Too many fixings create excessive thermal bridging. Follow manufacturer specifications for appropriate fixing patterns.

Walking on loose boards: Unsecured boards can slide, creating gaps or falling off the roof. Fix or temporarily secure boards before walking on them. Use crawl boards to distribute weight when working on loose-laid systems.

Quality Checks During Installation

Stop and check at regular intervals:

• Are board joints tight without gaps?
• Is the stagger pattern maintained?
• Are fixings at correct density and positions?
• Are boards flat without rocking or gaps beneath?
• Is the VCL still intact without damage?

Catching problems during installation is easier than correcting them after waterproofing is applied.Planning a flat roof project? Online Insulation stocks the complete range of PIR insulation products for flat roof applications, including Celotex and Kingspan boards in all thicknesses, with fast UK delivery for trade professionals.
