Arc Eaves Insulator 1200mmx100mmx900mm

Product code: 969515

Availability & Price on application

Est. Delivery: 3 - 5 working days * (View Delivery Policy)

EAN: 2000000105949 SKU: 969515 Category:
Specification
Product code 969515
EAN 2000000105949
Product Type Insulation
Brand Arc
Material Mineral Wool
Thickness 900mm
Description

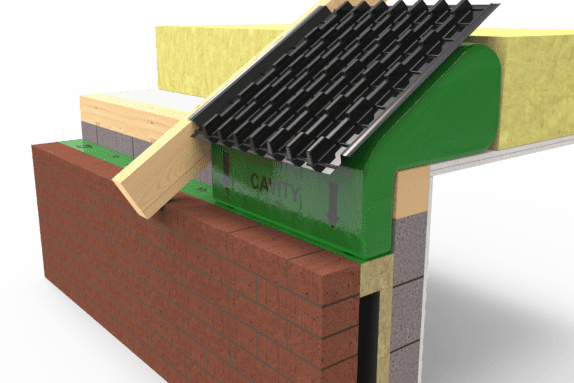

  • Ensures junction detail between wall plate and ceiling is fully insulated
  • Resolves traditional cold spot at difficult to reach triangular cavity
  • Provides ventilation opening of 10,000mm2/m
  • Application

    The requirement for ARC Eaves Insulator elevated from the problem of heat loss through the roof membrane at the junction between the pitched roof and the top of the cavity wall. The nature of the shape of this part of the dwelling lends itself to difficulties in access for construction workers to provide adequate and consistent insulation to prevent heat loss. Traditional methods of filling this triangular cavity are to apply a mineralfibre product manually over the ceiling trusses, forcing it into the narrow gap at this junction. This method of filling this triangular cavity can be problematic for the construction worker. Calculating the amount of mineral fibre required is difficult and knowing how much compression is required to achieve an effective fill results in inconsistencies in insulation and therefore the heat loss achieved.

  • Available to fit 600mm rafter centres
  • Can be used in conjunction with all ventilated facia and soffit designs
  • Helps improve your SAP rating reduces heat loss through the wall plate junction by up to 49% when compared to traditional loft insulation
  • Housebuilder Product of the Year 2019
