Arc Eaves Insulator Exttray Extei600/300

Product code: 141845

Availability & Price on application

Est. Delivery: 3 - 5 working days * (View Delivery Policy)

EAN: 2000000106809 SKU: 141845 Category:
Specification
Product code 141845
EAN 2000000106809
Product Type Insulation
Brand Arc
Material Mineral Wool
Thickness 300mm
Description

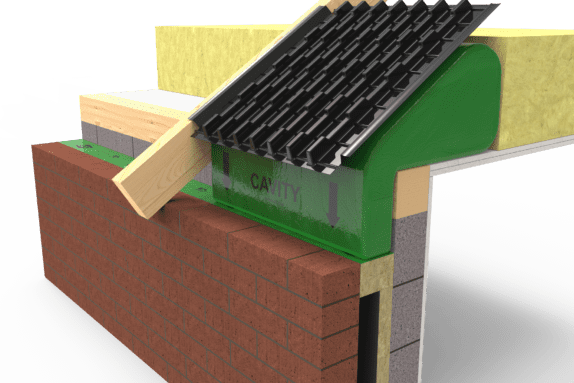

    • Ensures junction detail between wall plate and ceiling is fully insulated
    • Resolves traditional cold spot at difficult to reach triangular cavity
    • Provides ventilation opening of 10,000mm2/m

ApplicationThe requirement for ARC Eaves Insulator elevated from the problem of heat loss through the roof membrane at the junction between the pitched roof and the top of the cavity wall. The nature of the shape of this part of the dwelling lends itself to difficulties in access for construction workers to provide adequate and consistent insulation to prevent heat loss. Traditional methods of filling this triangular cavity are to apply a mineralfibre product manually over the ceiling trusses, forcing it into the narrow gap at this junction. This method of filling this triangular cavity can be problematic for the construction worker. Calculating the amount of mineral fibre required is difficult and knowing how much compression is required to achieve an effective fill results in inconsistencies in insulation and therefore the heat loss achieved.

    • Available to fit 600mm rafter centres
    • Can be used in conjunction with all ventilated facia and soffit designs
    • Helps improve your SAP rating reduces heat loss through the wall plate junction by up to 49% when compared to traditional loft insulation
    • Housebuilder Product of the Year 2019
Pricing & Availability

To enable us to offer the best service and prices throughout the website, some items are (POA) price on application. This means we can come back to you with the correct information based on your location and stock availability.
